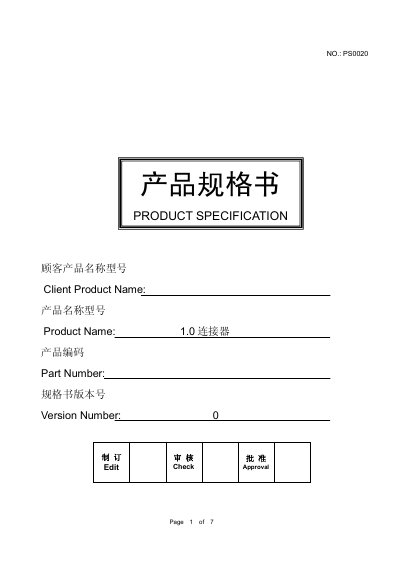

Specification sheet for the 1.0 electronic connector made by Yueqing Jieyu Electronics, covering mechanical, electrical and environmental performance.
The 1.0 connector specification outlines the applicable standards, product drawing, and general specifications such as wire gauge, current and voltage ratings, and operating temperature range. It also details mechanical performance, including insertion force, withdrawal force, durability, and vibration tests.
Electrical performance includes contact resistance, insulation resistance, dielectric strength, and crimping pull‑out forces for AWG32 and AWG30 wires. Environmental tests cover heat and cold resistance, temperature cycling, humidity, temperature rise, and salt‑spray exposure. This manual is written in Chinese.
| Current Rating | 0.5 A AC/DC |
|---|---|
| Voltage Rating | 50 V AC/DC |
| Operating Temperature Range | -25 °C to +85 °C |
| Crimping Pull‑Out Force (AWG32) | ≥ 8 N |
| Crimping Pull‑Out Force (AWG30) | ≥ 8 N |
| Humidity Test Conditions | 40 °C ±2, 90‑95 % RH, 96 h |
The connector is rated for 0.5 A AC or DC.
It can handle up to 50 V AC or DC.
