YU X4A/X4R All-in-One Controller Installation Manual

Installation and specification manual for YU X4A and X4R all-in-one controllers, covering wiring, interfaces, and safety.

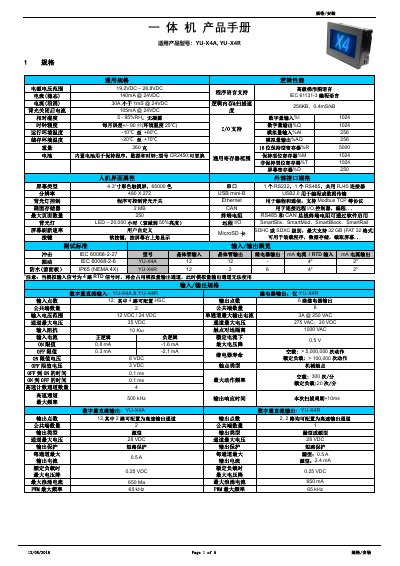

YU X4A/X4R All-in-One Controller Installation Manual - cover page
Brand
YU
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
5
File format
PDF
File size
1018 KB
Published
17 October, 2026
Updated
17 October, 2026
MD5 checksum
BADE6EEE554F966D8DCC71C220AAD808
PDF
YU X4A/X4R All-in-One Controller Installation Manual PDF

About this manual

This manual provides specifications and installation instructions for the YU X4A and YU-X4R all-in-one controllers. It details the device's logical performance, I/O capabilities, and environmental ratings. The document includes specific wiring diagrams for digital and analog inputs/outputs, as well as definitions for serial and Ethernet interfaces. This manual is written in Chinese.

What's inside

  • Specifications
  • Installation
  • Digital I/O Wiring
  • Analog I/O Wiring
  • Interface Definitions
  • Safety Precautions
  • Battery Replacement
  • Technical Support

Specifications

Power Voltage Range19.2VDC – 28.8VDC
Screen Type4.3 inch Color Touch Screen
Digital Input Points12
Analog Input Channels4
Analog Output Channels2
Weight360g
Operating Temperature-10℃ to +60℃
Battery TypeCR2450

Frequently asked questions

What is the power voltage range for the controller?

The power voltage range is 19.2VDC to 28.8VDC.

What type of battery is used for data retention?

The controller uses a CR2450 lithium battery.

How many digital input points does the YU-X4A have?

The YU-X4A has 12 digital input points.

What is the operating temperature range?

The operating temperature range is -10℃ to +60℃.
