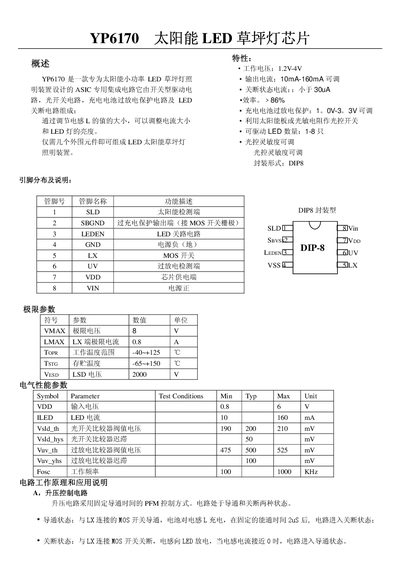

The YP6170 ASIC is designed for solar‑powered LED lawn lights, offering adjustable output current, over‑discharge protection and built‑in light‑control…
The YP6170 is an ASIC chip intended for small‑power solar LED lawn lighting. It integrates a switch‑type driver, light‑control circuit, battery over‑discharge protection and LED shut‑down circuit, allowing a complete lighting solution with only a few external components.
Key features include a wide operating voltage range (0.8‑6 V), adjustable LED current (10‑160 mA), low shut‑down current (<30 µA), high efficiency (>86 %), and configurable light‑control sensitivity using either a solar panel or a photo‑resistor. The chip also provides over‑discharge protection with a programmable threshold and supports driving 1‑8 LEDs. This manual is written in Chinese.
| VDD input voltage | 0.8‑6 V |
|---|---|
| LED current | 10‑160 mA |
| Operating temperature range | -40~+125 ℃ |
| Maximum voltage (VMAX) | 8 V |
| Maximum LX current (LMAX) | 0.8 A |
| Light‑control comparator threshold (Vsld_th) | 190‑210 mV |
| Over‑discharge comparator threshold (Vuv_th) | 475‑525 mV |
| Oscillator frequency (Fosc) | 100‑1000 kHz |
The chip operates with a VDD input voltage from 0.8 V to 6 V.
Brightness is adjusted by changing the inductance L value, which changes the current supplied to the LED.
A comparator with a threshold around 500 mV and a hysteresis of 100 mV provides over‑discharge protection.
The chip can operate from –40 °C up to +125 °C.
