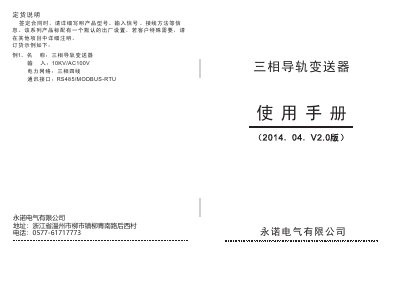

This manual covers the operation, programming, wiring, and troubleshooting for the Yongnuo V2.0 three-phase track transmitter used in power grid and…
The Yongnuo V2.0 three-phase track transmitter is designed for measuring and displaying electrical parameters such as current, voltage, frequency, active power, reactive power, and power factor in power grids and automated systems. It features high precision, stability, and anti-vibration capabilities, serving as a direct replacement for traditional pointer instruments. This manual is written in Chinese.
| Input/Output Isolation Resistance | >2kV |
|---|---|
| Operating Temperature Range | -20~75℃ |
| Insulation Resistance (Input/Output to Chassis) | >50MΩ |
| Active Power Accuracy Class | 1.0 |
| Reactive Power Accuracy Class | 1.5 |
| Communication Protocol | RS-485, MODBUS-RTU |
| Voltage Measurement Accuracy Class | 0.5 |
| Current Measurement Accuracy Class | 0.5 |
| Power Supply Range (AC/DC) | 85~270V |
Ensure appropriate auxiliary power (AC/DC 85-270V) is applied; exceeding this range may damage the instrument and cannot be recovered.
A negative active energy symbol generally indicates that the current input/output lines are reversed.
