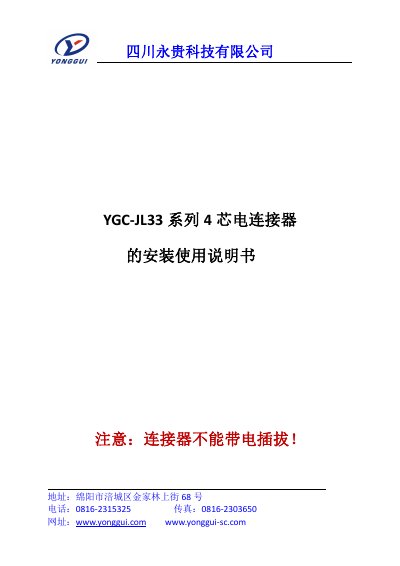

Installation and usage guide for the YGC-JL33 4‑pin power connector, including specifications, mounting steps, and wiring instructions.
This manual provides an overview of the YGC-JL33 series 4‑pin circular power connector, its electrical and mechanical characteristics, and the recommended installation procedures. It also details the connector components, such as the plug (YGC-JL33K4TY‑T) and socket (YGC-JL33J4ZY‑T).
The document includes step‑by‑step instructions for mounting the connector on both mobile and fixed panels, torque specifications for fastening, and guidelines for cable and pin‑hole assembly using the recommended crimping tools. Safety notes emphasize that the connector must not be plugged or unplugged while energized. This manual is written in Chinese.
| Operating Temperature Range | -40°C to +125°C |
|---|---|
| Relative Humidity | ≤95% |
| Rated Voltage | 380 VAC |
| Rated Current | 60 A |
| Contact Resistance | ≤0.5 mΩ |
| Insulation Resistance | ≥2500 MΩ |
| Dielectric Strength | AC 5000 V |
| Mechanical Life | 750 cycles |
| Locking Torque | 2.5 N·m ~ 3 N·m |
The recommended tightening torque is between 2.5 N·m and 3 N·m.
A special disassembly tool model RTSCB‑09 must be used.
Yes, the series can be installed either on the front or the rear of a board.
The connector is rated for up to 60 A.
