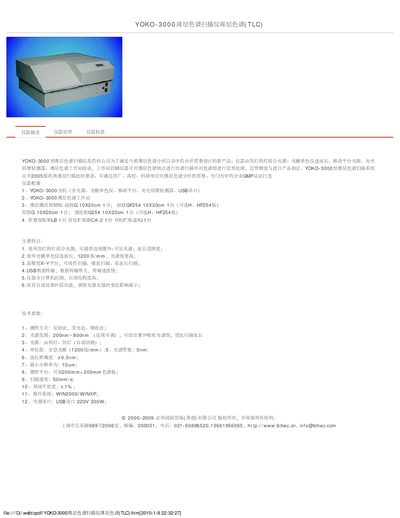

The YOKO-3000 TLC Scanner manual provides an overview, features, technical specifications, and operating instructions for the thin‑layer chromatography scanner.
The YOKO-3000 thin‑layer chromatography (TLC) scanner is designed for pharmaceutical, biotech and research laboratories. It combines a gas‑lamp/tungsten lamp light source, a holographic grating monochromator, a movable X‑Y platform and a photomultiplier detector to perform reflection, fluorescence and absorption measurements on TLC plates.
Key features include a continuous UV‑visible spectrum, high‑resolution 1200 lines/mm grating, USB data transfer, full computer control, and automatic feedback compensation. The instrument supports Windows 2000/XP and offers a scanning speed of 50 mm/s with a platform size up to 200 mm × 200 mm. This manual is written in Chinese.
| Measurement methods | Reflection, Fluorescence, Absorption |
|---|---|
| Spectral range | 200 nm – 800 nm (continuous) |
| Light source | Tungsten lamp and gas‑lamp, automatic switching |
| Monochromator | Holographic grating, 1200 lines/mm |
| Spectral bandwidth | 5 nm |
| Wavelength accuracy | ±0.5 nm |
| Minimum resolution | 10 µm |
| Platform size | 200 mm × 200 mm |
| Scanning speed | 50 mm/s |
| Baseline flatness | ±19 |
| Operating system | Windows 2000 / Windows XP |
| Power interface | USB, 220 V, 300 W |
It supports reflection, fluorescence, and absorption measurement methods.
The scanner operates at a speed of 50 mm per second.
The device works with Windows 2000 and Windows XP.
The wavelength accuracy is ±0.5 nm.
