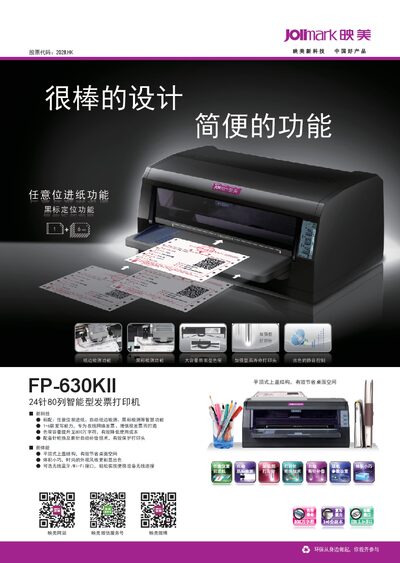

The 映美 FP-630KII is a 24‑needle, 80‑column smart invoice printer with paper edge detection, black‑mark detection, high‑capacity ribbon and optional wireless…
The FP-630KII offers a compact, flat‑top design that saves desk space while providing advanced features such as automatic paper‑edge detection, black‑mark positioning, and a high‑capacity 8‑million‑character ribbon. It supports 1+6 copy capability, making it suitable for online and VAT invoice printing.
Technical specifications include 24 needles, 80 columns, multiple print speeds up to 206 CPS, support for 17 international character sets, and a range of interface options (USB, parallel, optional serial, Ethernet, Bluetooth or Wi‑Fi). The printer operates on 220 V AC, weighs about 4.8 kg, and meets noise and environmental standards. This manual is written in Chinese.
| Needle count | 24 |
|---|---|
| Column count | 80 |
| Ribbon capacity | 8 million characters |
| Copy capability | 1+6 copies |
| Standard interfaces | USB, parallel |
| Optional wireless interfaces | Bluetooth, Wi‑Fi |
| Input voltage | 220 V AC, 50‑60 Hz |
| Dimensions (W×D×H) | 370 mm × 303 mm × 168 mm |
| Weight | ≈4.8 kg |
| Paper width (single‑sheet) | 70‑257 mm |
| Operating temperature | 5 °C – 35 °C |
| Storage temperature | -40 °C – 55 °C |
It supports a 1+6 copy capability, allowing one original and six duplicate copies.
Yes, optional Bluetooth or Wi‑Fi interfaces are available for wireless connectivity.
The ribbon can store up to 8 million characters, reducing operating costs.
