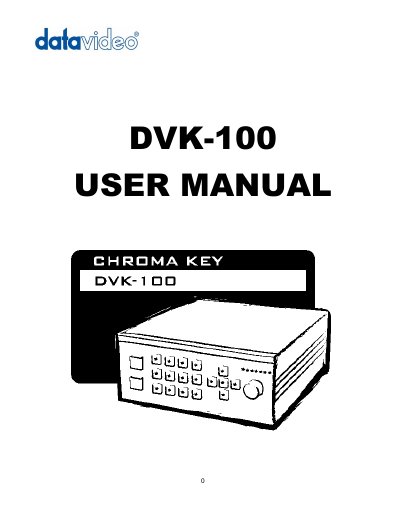

This manual provides operating instructions and setup guidelines for the Yangming DVK-100 high-quality chroma keyer used in virtual studio productions.
The Yangming DVK-100 is a high-quality chroma keyer designed for schools, personal studios, wedding photography, and small-scale production companies. It features two foreground video inputs and one background input, supporting blue, green, black, and white background colors. The device includes built-in TBC (Time Base Corrector) to stabilize images and offers RS-232 control terminals for computer integration. This manual is written in Chinese.
| Foreground Inputs | Two groups |
|---|---|
| Background Input | One group |
| Output/Input Terminals | S-Video (Y/C) and Composite |
| Built-in Feature | TBC Time Base Corrector |
| Control Interface | RS-232 and GPI |
| System Compatibility | PAL/NTSC Dual System |
The manual recommends using 3CCD cameras to significantly improve chroma keying quality.
Yes, it includes an internal TBC (Time Base Corrector) to correct unstable image situations.
Yes, it provides RS-232 control terminals that can be used to control the device with a computer.
