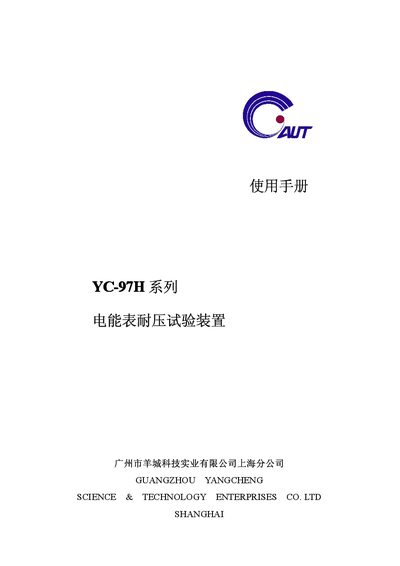

The Yangcheng YC-97H manual provides operation instructions, safety guidelines, technical specifications, and configuration details for the electric meter…
The YC-97H series dielectric test device, developed by Yangcheng Technology, is designed for testing electric meters according to national inspection standards. It features independent high‑voltage modules for each test position, optional 4000 V test stations, and optional computer‑controlled data logging.
The manual describes the control panel, step‑by‑step test procedure, safety precautions, technical specifications, and the standard equipment list. It also includes a factory test report confirming compliance with performance criteria. This manual is written in Chinese.
| Test voltage output | 0 ~ 750 V / 0 ~ 2500 V (optional 4000 V) |
|---|---|
| Main leakage current setting | 10 mA / 50 mA / 100 mA / 200 mA |
| Sub leakage current setting | 5 mA / 10 mA |
| Time setting | Manual / Auto 10 s / 20 s / 30 s / 60 s / 180 s |
| Output display accuracy | ± 1 % |
| Insulation resistance | > 10 MΩ |
| Dielectric strength | > 2000 V for 1 minute |
| Power consumption | ≤ 600 VA |
| Dimensions (L×W×H) | 1980 mm × 650 mm × 1855 mm |
| Weight | 250 kg |
| Maximum humidity | ≤ 75 % |
| Power supply | Single‑phase AC 220 V ±10 % , 50 Hz ±5 % |
A clearance of at least 0.8 m should be maintained between the device and any pedestrian pathway.
The device can output up to 2500 V, with an optional 4000 V test station available.
Press the [复位] (Reset) button on the over‑leakage indicator to restore normal operation.
