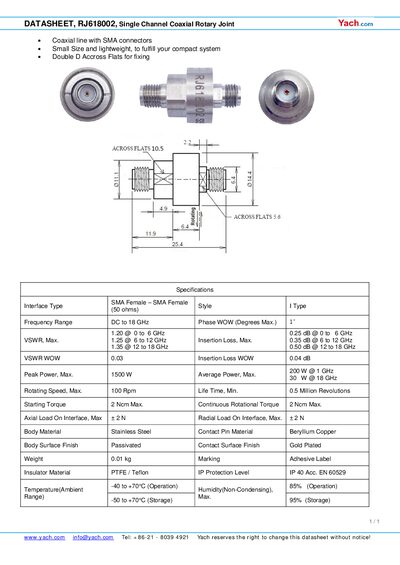

The Yach RJ618002 datasheet details specifications of a single‑channel coaxial rotary joint with SMA connectors.
The RJ618002 is a single‑channel coaxial rotary joint designed for compact systems. It features SMA female‑to‑female connectors, a lightweight stainless‑steel body, and a PTFE/Teflon insulator.
Key performance figures include a frequency range from DC to 18 GHz, a maximum VSWR of 1.20 (0‑6 GHz), insertion loss as low as 0.25 dB, and a peak power handling of 1500 W. Mechanical limits allow up to 100 rpm rotation, a lifetime of 0.5 million revolutions, and axial/radial loads of ±2 N.
| Interface Type | SMA Female – SMA Female (50 Ω) |
|---|---|
| Frequency Range | DC to 18 GHz |
| Maximum VSWR (0‑6 GHz) | 1.20 |
| Maximum Insertion Loss (0‑6 GHz) | 0.25 dB |
| Peak Power (max) | 1500 W |
| Average Power @ 1 GHz (max) | 200 W |
| Maximum Rotating Speed | 100 rpm |
| IP Protection Level | IP 40 |
The RJ618002 operates from DC up to 18 GHz.
It can handle a peak power of up to 1500 W.
The device is rated IP 40 according to EN 60529.
The maximum rotating speed is 100 rpm.
