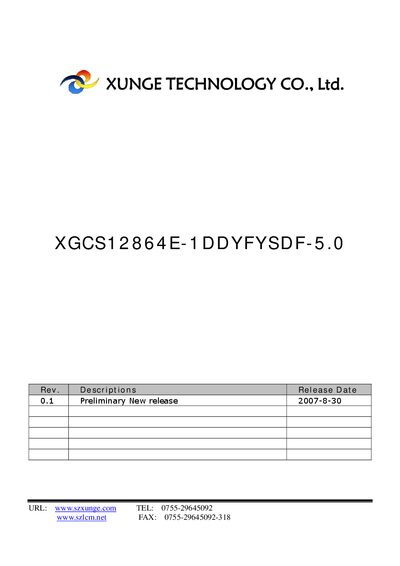

The Xunge XGCS12864E-1DDYFYSDF-5.0 LCD module specification sheet details its electrical, optical, mechanical and interface characteristics.
This document provides a complete technical description of the XGCS12864E-1DDYFYSDF-5.0 LCD module, including display mode, backlight type, mechanical dimensions, pin functions and interface options (parallel 8‑bit/4‑bit or serial). It also lists absolute maximum ratings, electrical and optical characteristics, and the instruction set used to control the display.
The final section gives design and handling precautions, such as recommended cleaning methods, shock protection, and anti‑static requirements, to ensure reliable operation and long service life of the module.
| Supply Voltage (VDD) range | -0.3 V to 4 V |
|---|---|
| Operating Temperature | -20 °C to 70 °C |
| LED Backlight Forward Voltage | 5.0 V typical |
| Interface options | 6800‑series 8‑bit/4‑bit or Serial |
| Display Mode | STN, Positive, Transflective, Gray |
The module is rated for operation from –20 °C to 70 °C.
The supply voltage (VDD) must stay between –0.3 V and 4 V.
Clean the LCD only with Isopropyl Alcohol or Ethyl Alcohol; other solvents may damage it.
No, the document advises never to attempt disassembly or rework of the LCD module.
