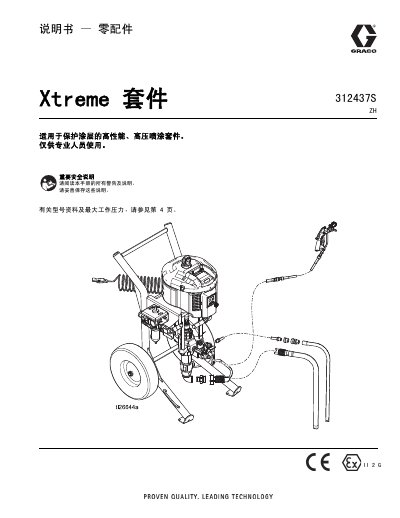

The Xtreme 312437S spray kit manual provides safety warnings, installation steps, operation guidance, and maintenance procedures.
This manual covers the Xtreme 312437S high‑pressure spray kit, intended for professional use on coating equipment. It includes safety warnings, part identification for light and heavy carts, installation instructions, grounding, pressure‑relief steps, and detailed operation procedures.
Additional sections describe preventive maintenance plans, daily upkeep, component lists, DataTrak controller setup, troubleshooting, and disassembly instructions. Technical data such as pressure ratios, maximum air input pressures, and pump performance tables are also provided. This manual is written in Chinese.
| Maximum air input pressure (25:1‑70:1 models) | 100 psi (0.7 MPa, 7 bar) |
|---|---|
| Maximum air input pressure (80:1 model) | 90 psi (0.62 MPa, 6.2 bar) |
| Maximum air input pressure (90:1 model) | 80 psi (0.55 MPa, 5.5 bar) |
| Pump fluid pressure at 16:1 ratio | see pump performance table (psig) |
Before servicing, close the power and air sources, then follow the pressure‑relief procedure described in the manual to safely depressurize the system.
The maximum air input pressure for an 80:1 model is 90 psi (0.62 MPa, 6.2 bar).
