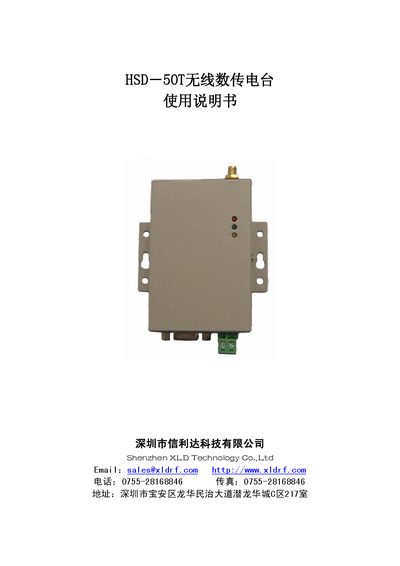

The XLD Technology HSD-50T wireless data transmission radio user manual provides technical specifications, setup instructions, parameter settings, and…
This manual describes the HSD‑50T wireless data transmission radio produced by XLD Technology. It includes the device's technical specifications such as modulation method, frequency band, power levels, and environmental limits, as well as detailed wiring and interface information for TTL, RS232 and RS485 connections.
The guide also explains how to power the unit, configure parameters, send commands, and use low‑power sleep mode. It covers data transmission rates, channel selection, supported protocols, and provides the factory default settings for quick start. This manual is written in Chinese.
| Modulation method | GFSK |
|---|---|
| Working frequency | 475 MHz |
| Transmit power | 17 dBm (50 mW) |
| Receive sensitivity | -117 dBm @ 9600 bps |
| Supported data rates | 1200–115200 bps |
| Power supply (TTL) | DC +3.6 V ~ +12.5 V |
| Power supply (RS232/RS485) | DC +4.5 V ~ +12.5 V |
| Dimensions (without antenna) | 90 mm × 60 mm × 23 mm |
| Transmit current | < 66 mA |
| Receive current | < 27 mA |
| Sleep current | < 25 µA |
| Operating temperature | -30 °C ~ 75 °C |
| Operating humidity | 10 % ~ 90 % RH (no condensation) |
| Antenna interface | Standard SMA (50 Ω) |
| Number of channels | 8 (64) |
| Maximum open‑area communication distance | > 1500 m at 9600 bps (BER=10⁻³) |
The sleep current is less than 25 µA.
The device can communicate over more than 1500 m in open space at 9600 bps with a BER of 10⁻³.
TTL mode requires 3.6 V to 12.5 V DC, while RS232/RS485 mode requires 4.5 V to 12.5 V DC.
