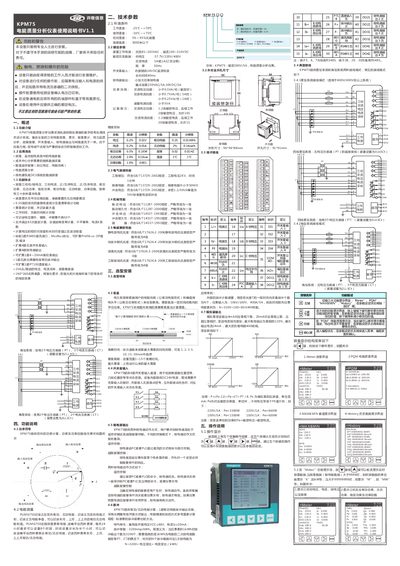

This manual describes the functions, technical parameters, installation, operation, and Modbus‑RTU communication of the KPM75 energy quality analyzer.
The KPM75 energy quality analyzer from XJ Information provides three‑phase voltage, current, power, energy, power‑factor, frequency, harmonic analysis and event recording. It supports both star and delta wiring, offers relay outputs, digital inputs, analog outputs and a built‑in RS‑485 Modbus interface.
The document explains how to install the device, configure parameters (including password 6666), operate the five front‑panel keys, and use the communication protocol. Safety warnings emphasize professional installation and isolation before any work. This manual is written in Chinese.
| 外形尺寸 | 96×96×88 mm |
|---|---|
| 工作温度 | -25 ℃~+70 ℃ |
| 工作电源 | 交流85~265 VAC，直流100~310 VDC |
| 额定电压 | 220 V / 400 V |
| 额定电流 | 5 A 或 1 A（订货注明） |
| 电压精度 | 0.2 % (0.01 V) |
| 电流精度 | 0.2 % (0.01 A) |
| 通信协议 | Modbus‑RTU |
The KPM75 uses the Modbus‑RTU protocol over RS‑485.
