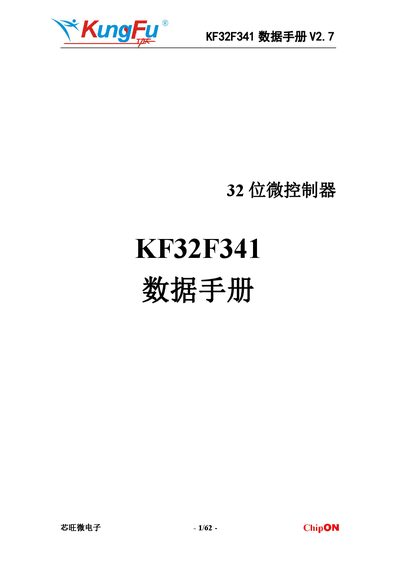

The KF32F341 datasheet from Xinwang Microelectronics details the 32‑bit microcontroller’s CPU core, memory, peripherals, electrical characteristics and…
This document provides a complete description of the KF32F341 32‑bit microcontroller, including its KungFu32 CPU core, memory architecture, peripheral set and power‑management features. It also contains system overviews, instruction set information and details on online programming and debugging.
The datasheet lists electrical specifications, package pin counts, and regulatory compliance (RoHS). It includes resource tables, pin‑mapping diagrams, and version history for the product. This manual is written in Chinese.
| CPU core | KungFu32 32‑bit core |
|---|---|
| Maximum frequency | 96 MHz |
| Flash memory | 128 KB (ECC protected) |
| RAM | 32 KB (ECC protected) |
| Dual‑port RAM | 2 × 256 B + 1 × 512 B (ECC protected) |
| Operating voltage | 1.8 V to 3.6 V |
| Operating temperature | -40 °C to 85 °C |
| GPIO pins (LQFP‑64) | 53 pins |
| USB interface | USB 2.0 full‑speed |
| CAN interface | 2 × CAN 2.0B modules |
| ADC | 12‑bit, up to 31 channels |
| DAC | 12‑bit DAC |
The microcontroller operates from 1.8 V up to 3.6 V.
The LQFP‑64 package provides 53 general‑purpose I/O pins.
Yes, it includes one USB 2.0 full‑speed controller.
