XinMingtian P73 Piezo Objective Positioner User Manual

User manual for the XinMingtian P73 piezo objective positioner covering safety, installation, operation, and specifications.

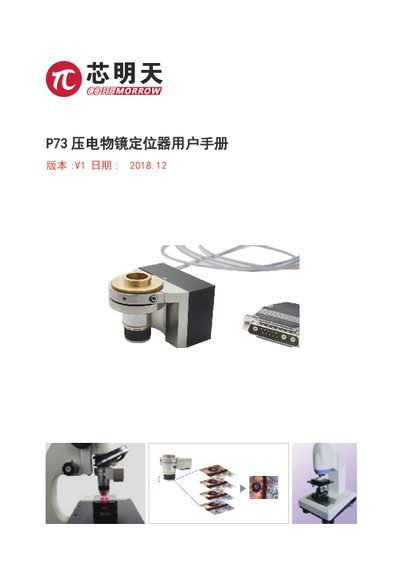

XinMingtian P73 Piezo Objective Positioner User Manual - cover page
Brand
芯明天
Category
Other device
Document type
User Manual
Language
Chinese
Pages
15
File format
PDF
File size
990 KB
Published
03 October, 2026
Updated
03 October, 2026
MD5 checksum
5D03F39B1C24B6DC697C800734D2B4D2
PDF
XinMingtian P73 Piezo Objective Positioner User Manual PDF

About this manual

This manual provides detailed guidance for the XinMingtian P73 piezo objective positioner, including safety precautions, product overview, working environment, and step‑by‑step installation and operation instructions. It also outlines transportation, inspection, maintenance, and disposal procedures.

Technical parameters such as maximum travel, load capacity, voltage range, and material specifications are listed, along with contact information for customer service and support. This manual is written in Chinese.

What's inside

  • Safety Guidelines
  • Product Overview
  • Working Environment
  • Installation and Operation
  • Transportation and Inspection
  • Maintenance and Handling
  • Technical Parameters
  • Customer Service
  • Contact Information

Specifications

Maximum travel550 μm
Maximum load0.4 kg
Drive voltage range0~120 V
MaterialSteel, aluminum
Model numberP73.Z500S/K

Frequently asked questions

What is the maximum travel distance of the P73 positioner?

The maximum travel distance is 550 μm.

What voltage range should be used for the P73 during operation?

Use a drive voltage between 0 V and 120 V.

What is the maximum load the P73 can support?

The device can support up to 0.4 kg of load.

What are the recommended working temperature limits?

The working temperature range is –20 °C to 80 °C.

Download PDF (990 KB)
