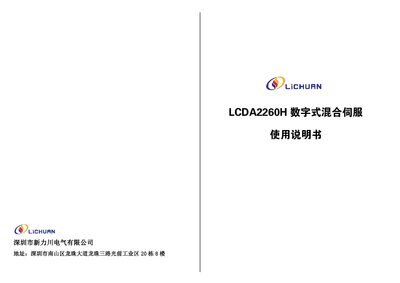

User manual for the Xinlichuan LDCA 2260 H digital hybrid servo, covering installation, wiring, parameter settings and operation.
The manual provides detailed instructions for installing the LDCA 2260 H digital hybrid servo, including electrical and environmental specifications, mounting dimensions, and wiring diagrams. It also describes the driver terminal definitions and control port connections.
Additional sections cover the parameter setting interface, debugging panel functions, data monitoring displays, and step‑by‑step operation procedures such as factory reset, alarm clearing, and parameter writing. This manual is written in Chinese.
| Input voltage range | AC 150V~230V (typically 220V) |
|---|---|
| Maximum output current | 6 A |
| Pulse type | Pulse + direction, CW/CCW |
| Logic input current | 10~20 mA |
| Pulse response frequency | 0~200 kHz |
| Insulation resistance | 500 MΩ |
| Storage temperature | -20 °C to 80 °C |
| Operating temperature | 0 °C to 55 °C |
| Operating humidity | 90 % RH (non‑condensing) |
| Vibration frequency | <0.5 G (4.9 m/s²) 10 Hz–60 Hz (non‑continuous) |
The servo accepts an AC input voltage range of 150 V to 230 V, typically connected to 220 V.
Press the key to switch to “AF_Ini”, then press the key again until the display shows “FiniSh”.
Switch to “AF_CLr” using the key, then press the key until the display shows “FiniSh”.
The default is 4000 pulses per revolution.
