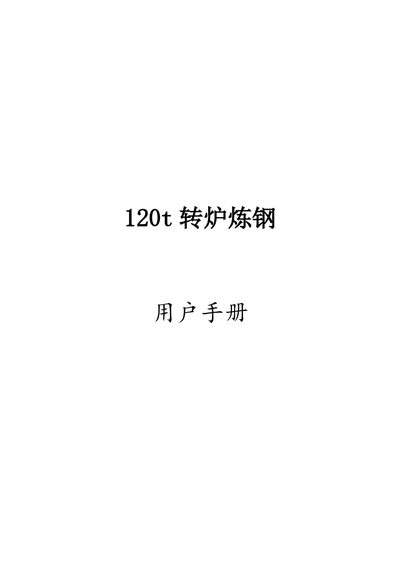

Xingke 120t Converter Steelmaking Virtual Simulation System User Manual

About this manual

This document serves as the user manual for the 120t Converter Steelmaking Production Virtual Simulation System developed by Shandong Xingke Intelligent Technology Co., Ltd. It details the software environment requirements, installation steps, and system startup procedures necessary for operation on Windows XP, 7, or 10 operating systems.

The guide provides comprehensive instructions on operating the virtual interface, including camera angle controls and monitoring the furnace condition in real-time. It explains how to select control programs, manage the oxygen lance (lifting, lowering, and positioning), and execute the steelmaking process from charging with iron and scrap to blowing oxygen, temperature sampling, and finally tapping the steel and slag. This manual is written in Chinese.

What's inside

• System Requirements
• System Startup
• Virtual Interface Introduction
• Furnace Condition Monitoring
• Control Program Selection
• Oxygen Lance Operation
• Charging Process
• Blowing and Sampling
• Tapping and Slagging
• Precautions

Specifications

Frequently asked questions

What are the system requirements for running the simulation?

The system requires Windows XP, 7, or 10, 2GB of RAM, a Core i3 2.0GHz processor, and an independent graphics card.

What precautions should be taken regarding the trolley?

The trolley must be locked before lowering the lance or blowing oxygen, and it cannot be moved if it is in the locked state.
