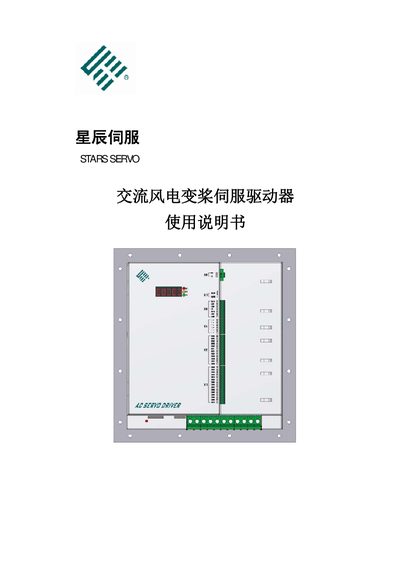

User manual for the Xingchen Servo STARS SERVO AC wind turbine pitch servo drive, covering safety, installation, wiring, software, and troubleshooting.
This manual provides comprehensive guidance for the Xingchen Servo STARS SERVO AC wind turbine pitch servo drive. It includes safety instructions, model naming conventions, technical parameters, installation steps, electrical wiring details, and software operation for pitch control monitoring.
The document also covers trial run procedures, fault diagnosis with LED and LCD indicators, and maintenance recommendations to ensure reliable operation in wind turbine applications. This manual is written in Chinese.
| AC Input Voltage | 265‑440 VAC |
|---|---|
| DC Bus Voltage (operating) | 200‑760 VDC |
| DC Bus Voltage (safe) | 200‑800 VDC |
| Rated Output Current | 30 A ± 2 A (FAS100), 25 A ± 1 A (FAS75) |
| Maximum Current (3 s) | 105 A ± 2 A (FAS100), 80 A ± 1 A (FAS75) |
| Feedback Types | Rotary transformer and SSI absolute position encoder |
| Protection Rating | IP54 (radiator side), IP20 (enclosure side) |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +75 °C |
| Maximum Altitude | 0‑2000 m |
| Dimensions (H × W × D) | 294 mm × 276 mm × 129 mm |
The drive accepts three‑phase AC input voltage from 265 VAC to 440 VAC at 50/60 Hz.
