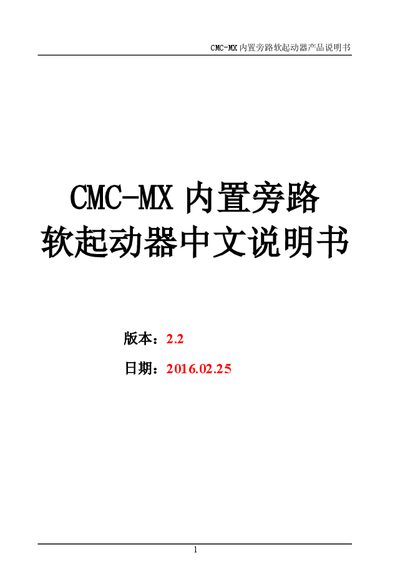

The manual provides safety, installation, operation, parameter settings, communication and maintenance instructions for the CMC-MX internal‑bypass soft starter.
This document describes the CMC‑MX soft starter, a motor start‑up and protection device that combines power‑electronics, a micro‑processor and automatic control. It explains the device’s functions, features, safety precautions and the required installation conditions.
The manual covers circuit wiring, panel operation, control modes, parameter configuration, fault detection, MODBUS‑RTU communication, and routine maintenance, helping users correctly set up and safely operate the soft starter in industrial applications. This manual is written in Chinese.
| Input voltage | AC110V‑220V ±15%, 50/60 Hz three‑phase |
|---|---|
| Analog output | 4‑20 mA current loop |
| MODBUS‑RTU device limit | Up to 32 devices |
| Default communication baud rate | 9600 bps |
| Protection functions | Phase loss, over‑current, short‑circuit, SCR protection, over‑heat, under‑load, phase‑current imbalance, etc. |
The soft starter can communicate with up to 32 devices on the MODBUS‑RTU network.
The factory default baud rate is 9600 bps.
It includes phase‑loss detection, over‑current, short‑circuit, SCR protection, over‑heat, under‑load, phase‑current imbalance and other safeguards.
The device should be mounted vertically to ensure adequate airflow and heat dissipation.
