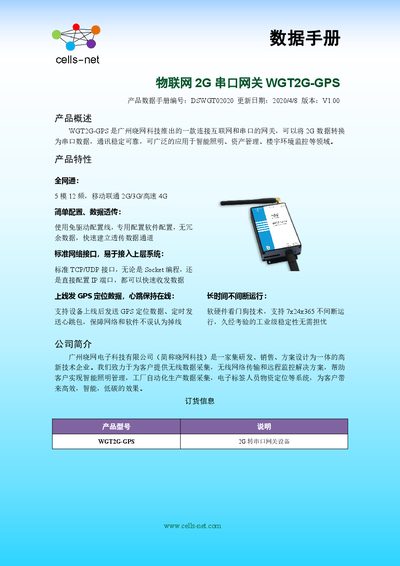

The WGT2G-GPS data sheet details the 2G‑to‑serial gateway’s features, electrical parameters, AT commands and GPS functions.
The WGT2G‑GPS is a 2G‑to‑serial gateway from Xiaowan Technology that converts 2G cellular data to serial port data. It supports full‑network compatibility with four GSM bands, TCP/UDP interfaces, and optional GPS positioning with heartbeat reporting.
The document provides mechanical dimensions, power specifications, performance parameters, software configuration tools, the complete AT command set, GPS operation modes, and application examples, along with disclaimer and after‑sales support information. This manual is written in Chinese.
| Working voltage (VCC) | 7‑9 V |
|---|---|
| Standby current (Irx) | 69 mA |
| Transmit current (Itx) | 125‑147 mA |
| Supported frequency bands | GSM850, GSM900, DCS1800, PCS1900 |
| Power class (GSM850/900) | Class 4 (2 W) |
| Power class (DCS1800/PCS1900) | Class 1 (1 W) |
| Operating temperature range | -40 °C ~ +80 °C |
| Antenna impedance | 50 Ω |
| UART baud rate | 115200 bps |
| GPS heartbeat interval | Configurable via AT command |
It supports four GSM bands: GSM850, GSM900, DCS1800 and PCS1900.
Parameters can be set using the dedicated configuration software or by sending AT commands through the serial port.
The device draws 69 mA in standby mode.
GPS data can be sent periodically by enabling the heartbeat packet or retrieved on demand with the AT+GPS command.
