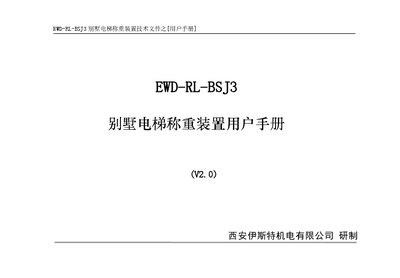

User manual for the EWD-RL-BSJ3 villa elevator weighing device, covering installation, debugging, parameter adjustment, and fault codes.
This manual provides instructions for the Xi'an Yiste EWD-RL-BSJ3 villa elevator weighing device, which is applicable to traction-driven or drum-driven villa elevators. It details the product's appearance, internal structure, and system interfaces, including specific connection points for sensors and power supplies.
The guide covers installation and debugging procedures, such as initializing the system and performing self-learning for no-load and rated load conditions. It also explains how to adjust system parameters, interpret display codes for normal operation and faults, and provides installation diagrams for various sensor models. This manual is written in Chinese.
| Applicable Elevator Types | Traction-driven or drum-driven villa elevators |
|---|---|
| Power Supply | AC/DC 24V |
| Max Load Capacity (Terminal) | DC/AC 48V/500mA |
| Analog Output | 0~10V |
It is required when the car is loaded to the effective rated load state or 20% of the effective load.
This system is designed for traction-driven or drum-driven villa elevators.
You must load the car to 20% of its effective rated load.
The maximum capacity for terminal J1 is DC/AC 48V at 500mA.
