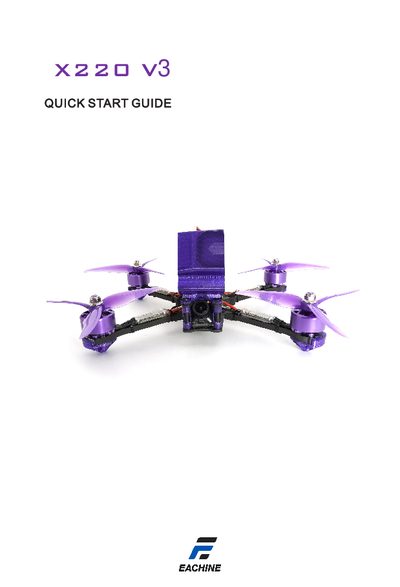

Quick start guide for the X220 V3 FPV drone frame kit, covering components, assembly, motor/ESC setup, flight controller, VTX, camera and basic flight…
This guide introduces the X220 V3 frame kit and lists all supplied parts, including the carbon‑fiber frame, 2207.5 2550KV brushless motors, 35A BLHeli_S ESCs, ICE F405‑PDB flight controller, RunCam Phoenix 2 camera, MT5G8 VTX and accessories. Detailed specifications for the frame, motors, flight controller, VTX and camera are provided.
Key sections explain how to unlock and lock the motors, perform a traversing flight, and adjust flight parameters. The guide also includes wiring references for the VTX, camera mounting, and taillight buzzer, helping users get the drone airborne quickly and safely.
| Wheel base | 225 mm |
|---|---|
| Upper plate thickness | 2.0 mm |
| Motor KV | 2550 RPM/V |
| Max continuous current | 45 A |
| Input voltage (flight controller) | 3‑6 S LiPo |
| Camera resolution | 1000 TVL |
| Camera lens focal length | 2.1 mm (M12) |
Set the unlock switch at the BF ground station, turn on the remote control, move the throttle to the lowest point, connect the battery to the plane, and then unlock the take‑off.
The VTX offers 0 mW, 25 mW, 200 mW and 600 mW output power, providing roughly 0.5 km range at 25 mW, 1 km at 200 mW and up to 2 km at 600 mW.
The camera uses a 1/2‑inch sensor with a horizontal resolution of 1000 TVL and a 2.1 mm M12 lens giving a 155° field of view.
