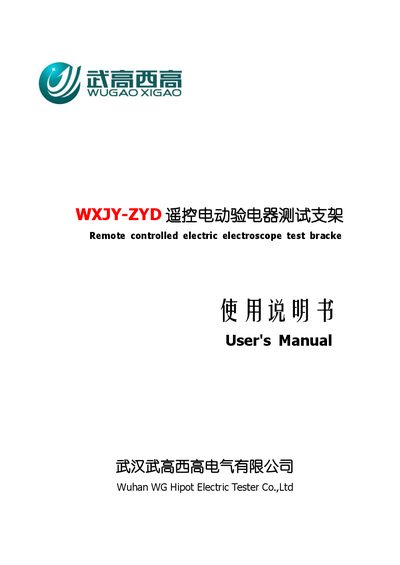

The manual provides safety instructions, assembly steps, specifications, and operation guidance for the WXJY-ZYD remote‑controlled electric tester test stand.
The WXJY-ZYD remote‑controlled electric tester test stand is designed to accurately measure the start‑up voltage of A‑type and B‑type electric testers according to DL740 standards. It features a spherical high‑voltage electrode, a ring‑shaped grounding electrode, motorized movement, and wireless remote control for precise distance adjustment.
The manual outlines essential safety precautions, such as maintaining a minimum 3.15 m distance from high‑voltage parts and ensuring grounding resistance does not exceed 4 Ω. Detailed assembly, installation, and positioning procedures are provided, along with a parts list and after‑sales service information. This manual is written in Chinese.
| Static ring diameter (A type) | 550 mm |
|---|---|
| Static ring diameter (B type) | 1050 mm |
| High‑voltage electrode sphere diameter (A type) | 60 mm |
| Rated voltage (A type) | 100 kV |
| Working voltage | AC 220 V |
The high‑voltage parts must be at least 3.15 m away from walls, metal equipment, and personnel.
All equipment must be grounded with a resistance not greater than 4 Ω.
The test stand is designed for a single test unit at a time.
The device operates on AC 220 V.
