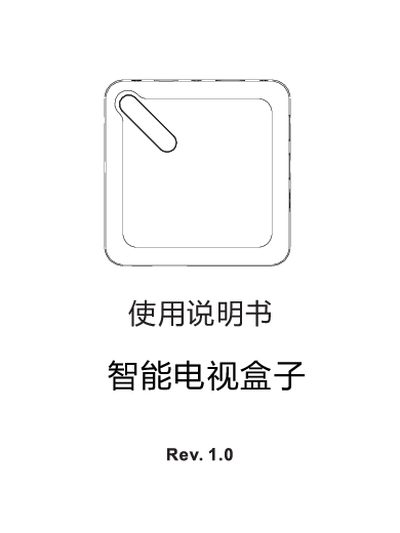

User manual for a Chinese smart TV box running Android, covering setup, connections, and troubleshooting.
This manual introduces the smart TV box, its Android operating system, and the basic hardware interfaces such as HDMI, Ethernet, USB, and SD card slots. It explains how to connect power, network (wired or wireless), and a TV, and how to install applications.
The guide also details initial configuration steps like language, resolution, time zone, system updates, and factory reset. A specifications section lists dimensions, processor, memory, supported video/audio formats, and wireless capabilities, followed by a FAQ addressing common issues. This manual is written in Chinese.
| Dimensions (L×W×H) | 95 mm × 95 mm × 14 mm |
|---|---|
| Weight | 108.5 g |
| Maximum Output Resolution | 4K |
| Processor | Amlogic S905X Quad‑core A53 2.0 GHz |
| ROM | 8 GB or 16 GB eMMC (depending on model) |
| RAM | 1 GB DDR3 or 2 GB DDR3 (depending on model) |
| Operating System | Android 6.0.1 |
| Wireless Support | 802.11 b/g/n |
| GPU | Mali‑450MP (Penta‑core) |
| Supported Languages | Chinese, English, French, German, Spanish, Italian, etc. |
Check that the TV is set to the same HDMI channel that the box is connected to.
Open Settings → Language and select the desired language.
Make sure the HDMI cable meets the HDMI 2.0/4K 2K 60 fps standard.
Ensure the SD card is inserted with the chip side facing up.
