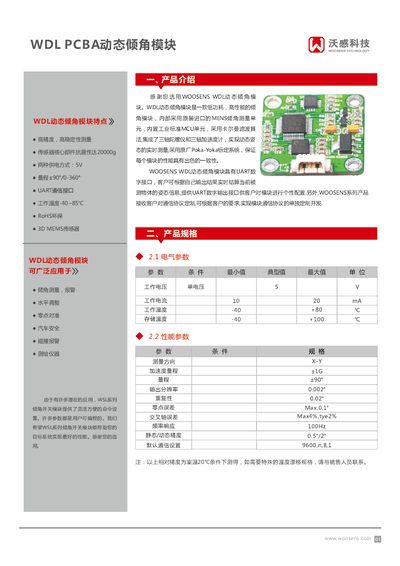

The WOOSENS WDL Dynamic Tilt Module is a low‑power, high‑performance sensor with UART interface, 3‑axis gyro/accelerometer and programmable settings.
The WOOSENS WDL Dynamic Tilt Module provides high‑precision, stable tilt measurement using an imported MEMS tilt‑measurement unit, an industrial‑grade MCU, and Kalman filtering. It integrates a three‑axis gyroscope and accelerometer to deliver real‑time dynamic attitude data, and includes a factory‑calibrated Poka‑Yokaa system for consistent performance.
The module offers a UART digital interface for customizable output, supports user‑programmable parameters, and can be tailored with custom communication protocols. Key specifications include a ±90° measurement range, 0.002° resolution, and operation from –40 °C to 85 °C. This manual is written in Chinese.
| Supply Voltage | 5 V |
|---|---|
| Operating Temperature | -40 °C to 85 °C |
| Output Resolution | 0.002° |
| Repeatability | 0.02° |
| Zero‑Point Error | Max 0.1° |
| Cross‑Axis Error | Max 4 % |
| Frequency Response | 100 Hz |
| Static Accuracy | 0.5° |
| Dynamic Accuracy | 2° |
| Default UART Settings | 9600,n,8,1 |
| Acceleration Range | ±1 g |
The module provides a UART digital interface for data output and configuration.
The default UART settings are 9600 baud, no parity, 8 data bits, 1 stop bit.
The module operates from –40 °C to +85 °C.
