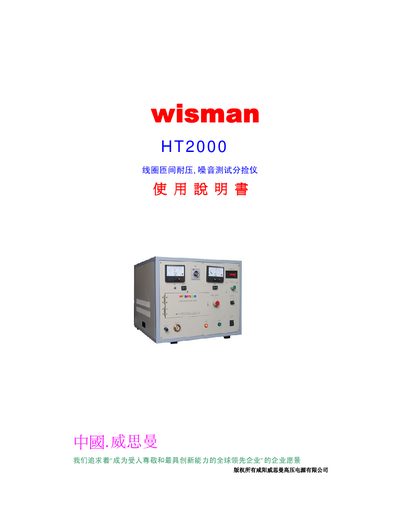

User manual for the Wisman HT2000 coil interturn voltage and noise test instrument, covering specifications, operation, safety and service.
The HT2000 instrument from Wisman is designed to generate high‑frequency high‑voltage for inter‑turn voltage and noise testing of coils. It provides manual and automatic testing modes, with adjustable frequency, voltage and matching components.
The manual details the device’s structure, circuit, preparation steps, operation procedures, safety precautions, front and rear panel functions, warranty terms and a parts price list. This manual is written in Chinese.
| Test frequency | 50 kHz‑150 kHz (manual) |
|---|---|
| Peak resonant voltage | 0‑3 kV (manual switch) |
| Test inductance range | 200 µH‑4 mH (air‑core) |
| Power supply | AC 220 V 50 Hz 600 W |
| Dimensions (H × W × D) | 440 mm × 500 mm × 580 mm |
| Weight | ≈ 50 kg |
Set the SELECTOR switch to HAND, turn the OUTPUT CONTROL knob to 0, adjust the noise and voltage indicators, then close the POWER switch and follow the step‑by‑step procedure.
The product is covered by a one‑year warranty within mainland China from the date of shipment.
