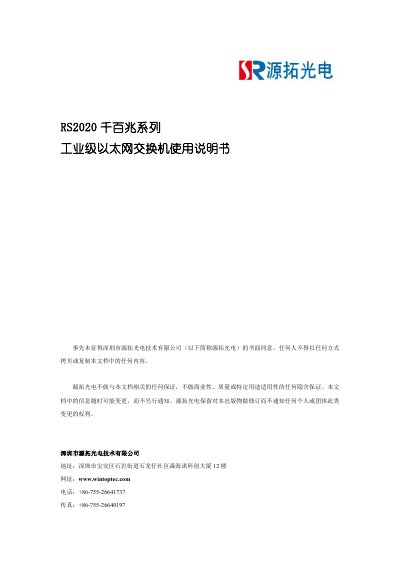

Wintoptec RS2020-4GF16T Industrial Ethernet Switch User Manual

This manual provides installation, configuration, and specification details for the Wintoptec RS2020-4GF16T industrial Ethernet switch.

Brand: Wintoptec
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 9
File format: PDF
File size: 478 KB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B688735C8C1C8B274016B0191E95B8A2
PDF: Wintoptec RS2020-4GF16T Industrial Ethernet Switch User Manual PDF

About this manual

The Wintoptec RS2020-4GF16T is a rail-mount industrial Ethernet switch designed for harsh environments such as wind power, distribution networks, and traffic systems. It features four gigabit SFP ports and sixteen 10/100 Mbps RJ45 ports, supporting dual power inputs for high reliability. The device operates in a wide temperature range of -40°C to +85°C and includes an alarm relay output. This manual is written in Chinese.

What's inside

Product Introduction
Device Panel Diagram
Specifications
LED Indicator Status
Installation Precautions
Rail Mount Installation
Relay Connection
Power Input
Cable Connection
Port Attributes

Specifications

Port Configuration	4 Gigabit SFP, 16 10/100 Mbps RJ45
Operating Temperature	-40°C to +85°C
Power Input	DC9-60V, AC110-240V
Dimensions	137(L)mm * 128(W)mm * 94(H)mm
MAC Address Capacity	8K
MTBF	≥ 500,000h

Frequently asked questions

What is the operating temperature range of the RS2020-4GF16T?

The device operates in a temperature range of -40°C to +85°C.

How many ports does the RS2020-4GF16T model have?

It has 4 Gigabit SFP ports and 16 10/100 Mbps RJ45 ports.

What is the maximum transmission distance for the electrical ports?

The electrical ports support a maximum transmission distance of 100 meters.
