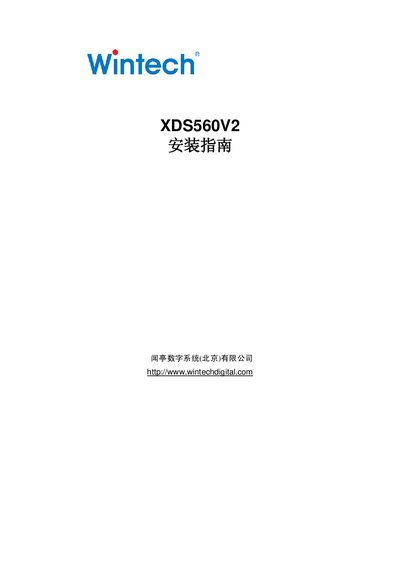

This installation guide provides step‑by‑step instructions for setting up the Wintech Digital XDS560V2 real‑time emulation system, including hardware…
The XDS560V2 is a real‑time emulation system designed for DSP development. This guide walks users through unpacking, checking the supplied items, and understanding the system’s key features and hardware parameters.
It covers system requirements, detailed installation steps for Code Composer Studio, driver installation, hardware connections via USB or Ethernet, self‑test procedures, safety notes, and troubleshooting resources. Appendices provide driver installation details for Windows platforms. This manual is written in Chinese.
| Processor | TMS320DM6441 (405/513 MHz) |
|---|---|
| DDR2 SDRAM | 256 MBytes |
| NAND Flash | 64 MBytes |
| Ethernet | 10/100 ENET |
| Connector Interface | Samtec 25x2 (QSS-025-RA) |
| Trace Connector | MIPI -60 buffered emulation/trace |
| Power Input | 5V with LED |
| FPGA | Cyclone III |
| Status LEDs | 6 |
The package contains the XDS560V2 emulator, a target cable, a power supply and cable, a USB cable, an installation CD, and a warranty card.
Run the Setup_XDS560v2.exe program from the installation CD and follow the on‑screen prompts to complete the driver installation.
A 1 GHz or faster Pentium‑compatible CPU, at least 1 GB RAM, 4 GB free hard‑disk space, a USB 1.0/1.1/2.0 port, and a 10/100 Mbps Ethernet interface running Windows 2000/XP/2003/Vista/7.
Launch the xds560v2probe.exe utility from the desktop shortcut or the CCS common folder and select tests such as Reset, PathLength, or Intergrity.
