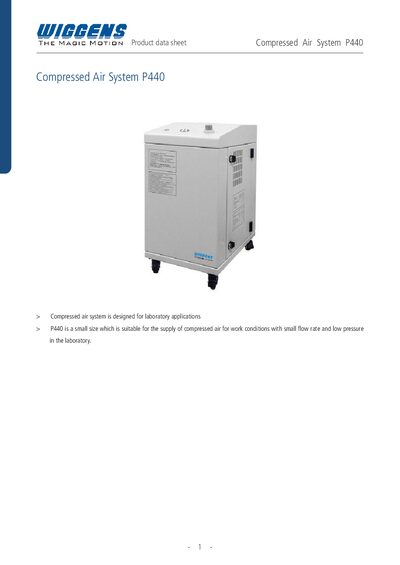

The Wiggens P440 compressed air system data sheet lists specs such as 30 L/min airflow, 5 bar pressure, 30 L tank, 750 W power and dimensions 680×340×720 mm.
The Wiggens P440 is a compact compressed air system designed for laboratory use where low flow rates and low pressures are required. It provides automatic start/stop control and includes a safety valve that releases pressure above 8 bar.
Key specifications include a maximum airflow of 30 L/min, maximum pressure of 5 bar, a 30 L air tank, 750 W power consumption, and dimensions of 680 mm × 340 mm × 720 mm. The unit weighs 56 kg, operates with a 6 mm quick connector or G1/4 Male connection, and features a WND30005 filter.
| Max. Airflow | 30 L/min |
|---|---|
| Max. Pressure | 5 bar |
| Pressure Adjustment Range | 0~5 bar |
| Power Consumption | 750 W |
| Connection Type | 6 mm quick connector or G1/4 Male |
| Air Tank Capacity | 30 L |
| Weight | 56 kg |
| Noise Level | 69 dB |
| Dimensions (L×W×H) | 680×340×720 mm |
| Filter Type | WND30005 |
| Running Type | Auto stop, start at 3 bar, stop at 5 bar |
| Safety Valve | Releases pressure automatically when over 8 bar |
The system can deliver up to 30 L/min of airflow.
It can generate a maximum pressure of 5 bar.
The safety valve automatically releases air pressure when the tank pressure exceeds 8 bar.
