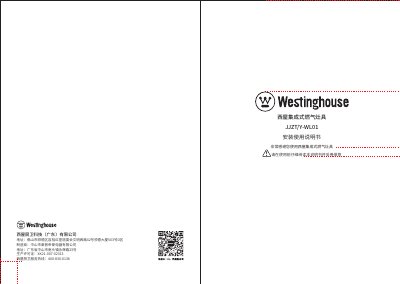

This manual provides installation instructions, safety precautions, operating procedures, maintenance guidelines, and troubleshooting for the Westinghouse…
The document serves as a comprehensive guide for the Westinghouse JJZT/Y-WL01 integrated gas stove. It covers essential topics including unpacking verification, technical specifications, safety warnings regarding electrical and gas connections, and detailed installation steps for both the main unit and chimney hood components.
Key operational instructions include connecting power and gas lines correctly, adjusting the machine height to fit cabinetry between 800mm and 830mm, and using the built-in cleaning cabinets with UV sterilization. The manual also details maintenance routines, common fault diagnosis, circuit diagrams, and warranty information. This manual is written in Chinese.
| Left Burner Thermal Load | 5.0kW |
|---|---|
| Right Burner Thermal Load | 5.0kW |
The machine is suitable for cabinetry with a height between 800mm and 830mm, as the adjustable support feet allow for height regulation.
After opening the main gas valve, apply soapy water to the connection points; if no bubbles form, there is no leak.
