Technical specifications, electrical and optical characteristics, and package dimensions for the Wenrun LYG20043 green LED.

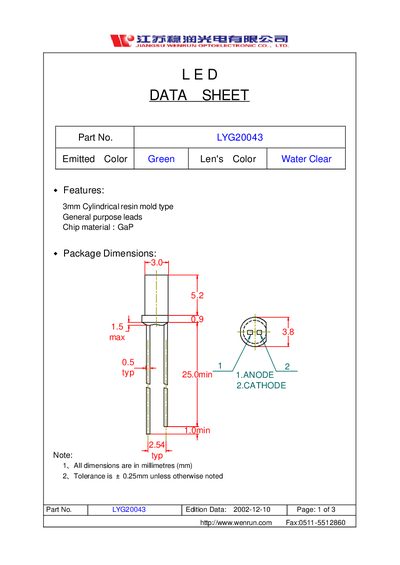

The datasheet provides the full set of specifications for the LYG20043 green LED, a 3 mm cylindrical resin component. It lists the emitted color, package type, and physical dimensions along with the part number.
Key electrical and optical parameters are detailed, including maximum ratings, forward voltage, luminous intensity, wavelength data, and typical characteristic curves for forward current and voltage.
| Emitted Color | Green |
|---|---|
| Package Type | 3 mm cylindrical resin mold |
| Power Dissipation | 80 mW |
| Pulse Forward Current (Duty 1/10 @ 1 kHz) | 100 mA |
| Continuous Forward Current | 30 mA |
| Reverse Voltage | 6 V |
| Operating Temperature Range | -25 °C to 85 °C |
| Storage Temperature Range | -40 °C to 100 °C |
| Forward Voltage (IF=20 mA) | 2.2 V – 2.5 V |
| Spectral Line Half Width | 25 nm |
The LED emits green light.
The forward voltage is between 2.2 V and 2.5 V.
The device operates from –25 °C up to 85 °C.
It is a 3 mm cylindrical resin mold type.
