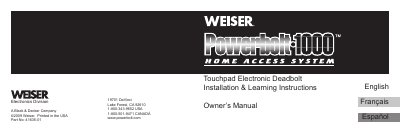

Installation and programming guide for the Weiser 41635-0119701 Touchpad Electronic Deadbolt.
This manual provides step‑by‑step instructions for installing the Weiser Touchpad Electronic Deadbolt, including door preparation, latch and strike installation, and mounting of the touchpad and power board. It also covers programming of user codes, proper operation, warranty information, and troubleshooting tips.
Key sections detail the required hole sizes, backset measurements, battery replacement, and how to change door handing. The guide includes wiring diagrams, battery installation steps, and safety warnings to ensure reliable performance of the electronic deadbolt.
| Deadbolt face hole diameter | 2‑1/8" (54 mm) |
|---|---|
| Backset | 2‑3/8" or 2‑3/4" |
| Strike hole size | 1‑1/8" diameter, 1‑1/4" deep |
Under normal use the batteries should be replaced once a year.
Press the program button, retract the latch, press the lock button, enter a 4‑ to 8‑digit code, then press the lock button again; a two‑second beep confirms the code.
Remove the jumper from position “A” on the power board and place it into position “B”.
