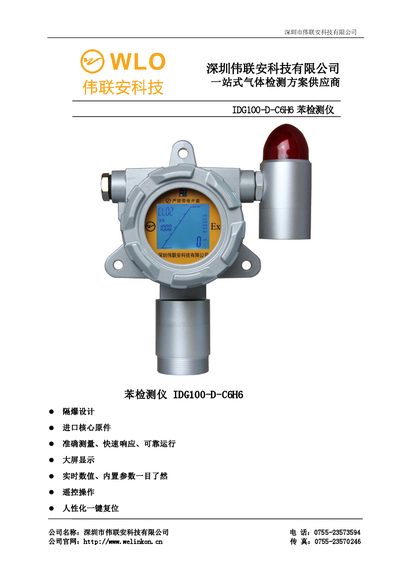

The IDG100-D-C6H6 is a benzene gas detector with explosion‑proof design, LCD display and multiple signal outputs.
The IDG100-D-C6H6 benzene detector from Weilinkon is a next‑generation gas transmitter that processes sensor signals with a high‑precision calculation circuit and converts them to various analog and digital standard signals. It features explosion‑proof construction, a large LCD screen, remote control operation, and a one‑key reset.
The device supports multiple sampling methods (diffusion, pump, pipeline) and offers output options such as 4‑20 mA, 0‑5 V, RS485 and wireless signals. It is suitable for hazardous environments in petrochemical, chemical, metallurgical, fire‑protection, mining, power, marine, environmental monitoring and other industries. This manual is written in Chinese.
| Detection Gas | Benzene (C6H6) |
|---|---|
| Detection Principle | PID |
| Measurement Range | 0‑10, 100, 200, 500, 1000, 2000, 5000, 10000 ppm |
| Resolution | 0.01‑5 ppm |
| Power Supply | DC24 V ± 6 V |
| Signal Output | RS485, 4‑20 mA, 0‑5 V (others on request) |
| Explosion Protection Level | ExdⅡCT6 Gb |
| Ingress Protection | IP65 |
| Operating Temperature | -20 °C to 50 °C |
| Weight | 1.8 kg |
The detector can measure benzene concentrations from 0 ppm up to 10 000 ppm, with selectable ranges such as 0‑10, 100, 200, 500, 1000, 2000, 5000 and 10000 ppm.
It operates on a DC24 V supply with a tolerance of ±6 V.
The device provides RS485, 4‑20 mA, 0‑5 V analog outputs, and optional wireless signals.
Yes, it has an explosion‑proof rating of ExdⅡCT6 Gb and an IP65 protection level.
