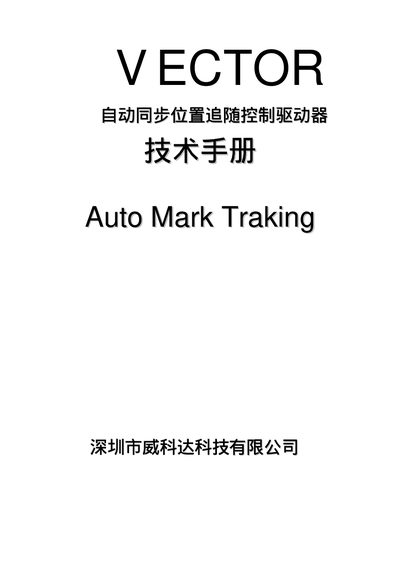

The Weikada VEC‑VBT technical manual provides product overview, wiring, parameter settings, system testing, usage notes and application examples for the…
This manual introduces the VEC‑VBT automatic synchronous position tracking controller, describing its main functions, hardware architecture and basic wiring connections. It includes a product overview, a detailed description of the controller’s features and the recommended installation wiring.
The document then covers parameter configuration (including Modbus RTU settings, DI/DO interfaces), system testing procedures, troubleshooting tips and several application examples. It also provides guidance on resetting the controller and adjusting motion‑control parameters such as pitch and index settings. This manual is written in Chinese.
| Encoder resolution | 1024 pulses per revolution |
|---|---|
| Pitch | 0.78 mm |
Set the baud rate (0 = 4800 bps, 1 = 9600 bps, 2 = 19200 bps), stop bits (0 = 1, 1 = 2) and parity (0 = Even, 1 = Odd, 2 = None) as described in the Modbus RTU parameter section.
