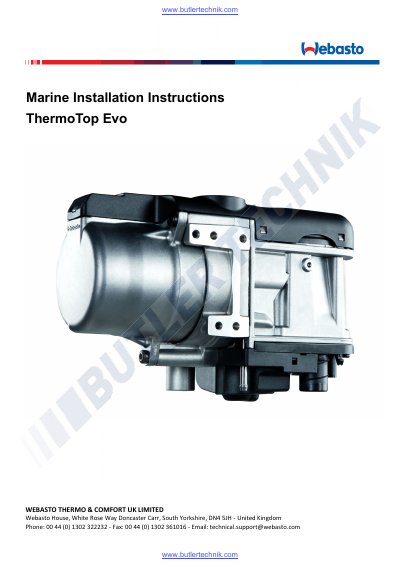

Official installation instructions for the Webasto ThermoTop Evo diesel heater, covering safety, positioning, exhaust, fuel, plumbing, electrical systems…
This document provides comprehensive installation instructions for the Webasto ThermoTop Evo, a 5 kW marine diesel heater. It details critical safety warnings regarding carbon monoxide and fire risks, emphasizing that installation must be performed by trained personnel with appropriate tools.
The guide covers all necessary steps for proper setup, including positioning the unit to ensure automatic bleeding of the circulation pump, installing the sealed stainless steel exhaust system, connecting the fuel dosing pump, plumbing connections for heated water, and wiring configurations. It also includes warranty terms specific to UK installations.
| Power output | 5 kW (variable between 5kW and 2.5kw) |
|---|---|
| Fuel type | Diesel |
| Exhaust pipe ID | 24mm |
Installation and repair must be completed by personnel who have finished a Webasto training course.
The standard warranty period is 36 months from the registration date, provided specific conditions are met.
The heater requires a dry, protected area and should be fitted as low as possible to ensure automatic bleeding of the circulation pump.
