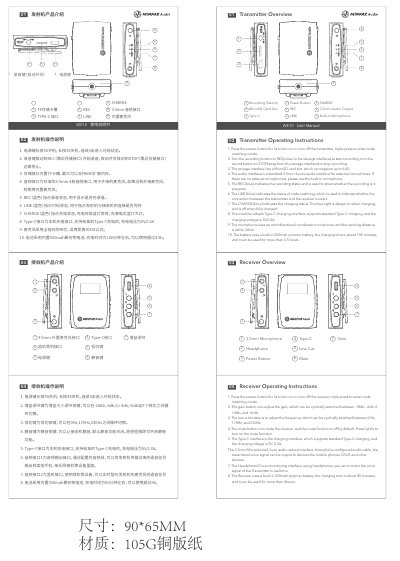

The WE10 User Manual provides operating instructions, specifications, and connection details for the transmitter and receiver.
The WE10 is a compact transmitter and receiver set that records audio, stores recordings on a MicroSD card, and supports external microphones via a 3.5 mm 4‑pole jack. The manual explains power control, recording functions, charging, and audio interfaces.
Key features include a Type‑C charging port (5 V 0.4 A), a built‑in 500 mAh polymer battery, gain and low‑cut adjustments, and status LEDs for recording, code‑matching, and charging. The receiver offers similar controls and a 350 mAh battery for up to 4 hours of use. This manual is written in Chinese.
| MicroSD Card Capacity | Up to 64 GB |
|---|---|
| Audio Connector | Standard 3.5 mm 4‑pole jack |
| Charging Voltage (Transmitter) | 5 V, 0.4 A |
| Charging Voltage (Receiver) | 5 V, 0.3 A |
| Battery Capacity (Transmitter) | 500 mAh polymer |
| Battery Capacity (Receiver) | 350 mAh polymer |
| Gain Settings | -18 dB, -6 dB, 0, +3 dB, +6 dB |
| Low‑Cut Frequencies | 0 Hz, 170 Hz, 230 Hz |
Press and hold the power button for 3 seconds to turn the transmitter on or off; triple‑press to enter code‑matching mode.
The transmitter uses a built‑in 500 mAh polymer battery that charges in about 100 minutes and provides more than 3.5 hours of operation; the receiver uses a 350 mAh battery lasting over 4 hours.
Connect a standard Type‑C charger; the transmitter charges at 5 V 0.4 A and the receiver at 5 V 0.3 A.
