Wanxun QSLEX Electric Linear Actuator Manual

User manual for the Wanxun QSLEX series electric linear actuator, covering overview, wiring, installation and parameter settings.

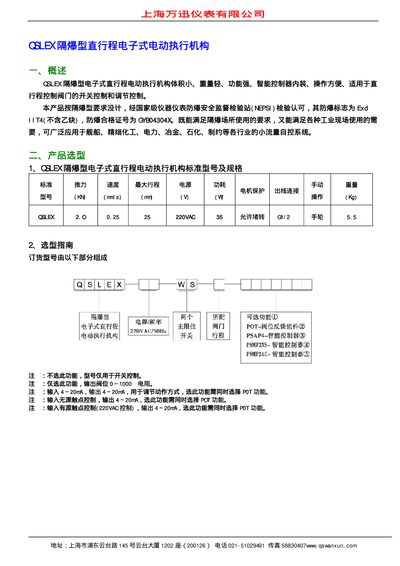

Wanxun QSLEX Electric Linear Actuator Manual - cover page
Brand
Wanxun
Category
Industrial Supply
Document type
User Manual
Language
Chinese
Pages
9
File format
PDF
File size
1 MB
Published
28 September, 2026
Updated
28 September, 2026
MD5 checksum
147A9B9D1F6B23A2F8D44E0CE4C5D5DA
PDF
Wanxun QSLEX Electric Linear Actuator Manual PDF

About this manual

The QSLEX series electric linear actuator is a compact, lightweight device with integrated intelligent controller, designed for use in industrial automation, chemical, metallurgical and other small‑flow control systems. The manual provides product overview, model selection, optional function modules, mechanical connection, electrical wiring, controller details and debugging procedures.

Detailed sections describe the actuator's specifications, installation precautions, limit‑switch settings, and troubleshooting information, helping users correctly install, configure and maintain the device. This manual is written in Chinese.

What's inside

  • Overview
  • Model Selection
  • Optional Function Modules
  • Mechanical Connection
  • Electrical Wiring
  • Intelligent Controller (PSAP4)
  • Product Debugging
  • Parameters and Settings
  • Dimensions
  • Safety and Installation Notes

Specifications

Maximum Thrust2000 N
Operating Voltage220 VAC / 50 Hz
Input Signal4‑20 mA
Output Signal4‑20 mA
Operating Temperature Range-10 °C to +65 °C
Storage Temperature Range-20 °C to +50 °C

Frequently asked questions

What is the maximum thrust the actuator can deliver?

It can deliver a maximum thrust of 2000 N.

What is the operating temperature range?

The actuator operates between –10 °C and +65 °C.

Download PDF (1 MB)
