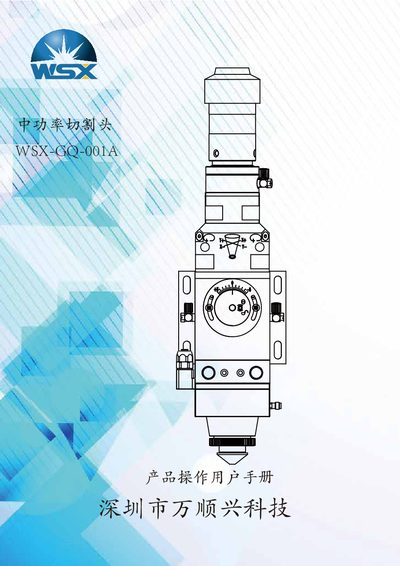

The Wanshunxing WSX-GQ-001A medium power cutting head user manual provides safety guidelines, specifications, installation, adjustment, maintenance and…
This manual introduces the WSX‑GQ‑001A medium power fiber laser cutting head, describing its sealed internal structure, two‑point alignment, cam‑type focus adjustment, and drawer‑type protective lens. It lists compatible laser sources, QBH connector options, and built‑in distance‑sensing and protection systems.
The document covers safety precautions, unpacking checks, installation steps, connection to fiber lasers and machine tools, focus and alignment procedures, routine maintenance of the ceramic ring, nozzle, and cooling components, as well as a detailed fault‑analysis table for troubleshooting common issues. This manual is written in Chinese.
| Maximum laser power | Below 2000 W |
|---|---|
| Compatible laser brands | IPG, SPI, Rofin, nLight, Coherent, Ruike, Chuangxin |
| Connector type | QBH |
| Collimation focal length | 75 mm, 100 mm |
| Focusing focal length | 125 mm, 150 mm, 200 mm |
| Vertical focus adjustment range | ±5 mm |
| Horizontal adjustment range | ±1.5 mm |
| Effective aperture | 25 mm |
| Maximum gas pressure | 25 Bar |
| Weight | 3.3 kg |
Operators must wear laser‑protective goggles that meet DIN EN 207 and BGV B2 standards and must never look directly at the laser beam.
The cutting head is rated for a maximum gas pressure of 25 Bar.
