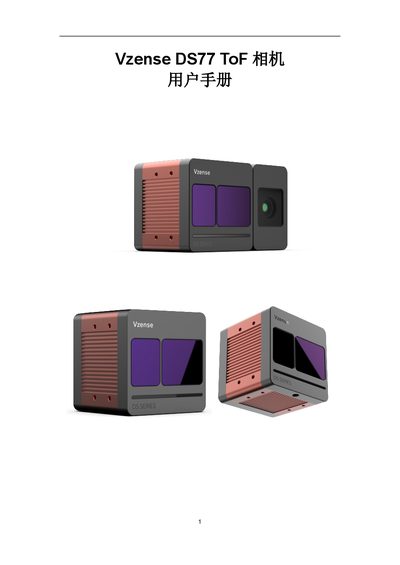

The Vzense DS77 ToF camera user manual provides specifications, safety notes, installation steps, and operation guidance.
This manual describes the Vzense DS77 series Time‑of‑Flight depth cameras, including the Pro, Lite, C Pro and C Lite variants. It covers product features, safety precautions, electrical characteristics, mechanical dimensions, and required software tools.
The document also provides detailed installation instructions, interface wiring, power options, firmware upgrade procedures, and a parts list for accessories. Safety information such as laser class and recommended operating conditions are included to ensure reliable and safe use. This manual is written in Chinese.
| Resolution | 640 × 480 (VGA) @ 30 FPS |
|---|---|
| RGB Resolution | 1600 × 1200 @ 30 FPS |
| Distance Range | 0.4 m – 5 m (customizable) |
| Power Consumption | Average/Max 6 W |
| Dimensions (DS77 Pro) | 65 mm × 65 mm × 72.65 mm |
| Weight (DS77 Pro) | 342 g |
| Power Supply | PoE+ or DC power |
| Communication Interface | Gigabit Ethernet and RS485 |
| IP Rating | IP67 (Pro & C Pro) |
| Operating Temperature | -20 °C to 50 °C |
The emitted laser complies with Class 1 safety level.
The DS77 Pro can be powered by PoE+ or a DC power source (11 V – 26 V).
The device is rated for ambient temperatures from –20 °C to 50 °C.
It supports Gigabit Ethernet and RS485 interfaces.
