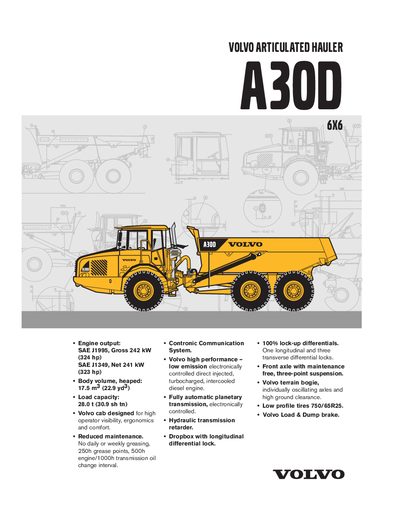

Technical specifications, operation and service information for the Volvo A30D 6x6 articulated hauler.
The Volvo A30D 6x6 articulated hauler is equipped with a high‑performance low‑emission diesel engine delivering up to 242 kW (324 hp) and a fully automatic planetary transmission with hydraulic retarder. It features 100 % lock‑up differentials, a terrain bogie with individually oscillating axles, and a maintenance‑free three‑point suspension for rugged off‑road performance.
The manual provides detailed data on drivetrain, engine, electrical and hydraulic systems, cab ergonomics, body dimensions, load capacity (28 t), operating weight (≈50 660 kg), and safety equipment such as ROPS/FOPS‑protected cab and air‑hydraulic disc brakes. Service procedures, optional equipment, and troubleshooting information are also included.
| Engine output (gross) | 242 kW (324 hp) |
|---|---|
| Engine torque (gross) | 1420 Nm (1047 lb‑ft) |
| Displacement | 9.6 L |
| Load capacity | 28.0 t (30.9 sh tn) |
| Body volume (heaped) | 17.5 m³ (22.9 yd³) |
| Tire size | 750/65R25 |
| Transmission type | Fully automatic planetary transmission |
| Differential locks | 1 longitudinal, 3 transverse (100 % lock‑up) |
The engine delivers a gross output of 242 kW (324 hp) according to SAE J1995.
It has a load capacity of 28.0 t (30.9 short tons).
The hauler has one longitudinal and three transverse differential locks with 100 % lock‑up, selectable on the move.
Standard tires are 750/65R25.
