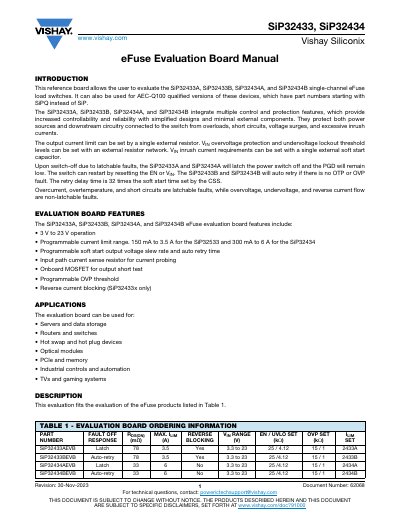

This manual describes the evaluation board for Vishay Siliconix SiP32433 and SiP32434 single-channel eFuse load switches, covering features, applications…
The document serves as a reference guide for the SiP32433 and SiP32434 eFuse evaluation boards (EVBs). These boards allow users to evaluate specific single-channel eFuse load switch devices, including models ending in A or B, as well as their AEC-Q100 qualified versions starting with 'SiPQ'. The manual details the board's features, such as programmable current limits and soft start capabilities, and lists various applications like servers, routers, and hot-swap devices.
| Operating Voltage Range | 3 V to 23 V |
|---|---|
| SiP32434 Current Limit Range | 300 mA to 6 A |
| Input Capacitor Value | 10 μF |
| Capacitor Voltage Rating | 50 V |
It supports the SiP32433A, SiP32433B, SiP32434A, and SiP32434B single-channel eFuse load switches.
The output current limit can be set by a single external resistor.
