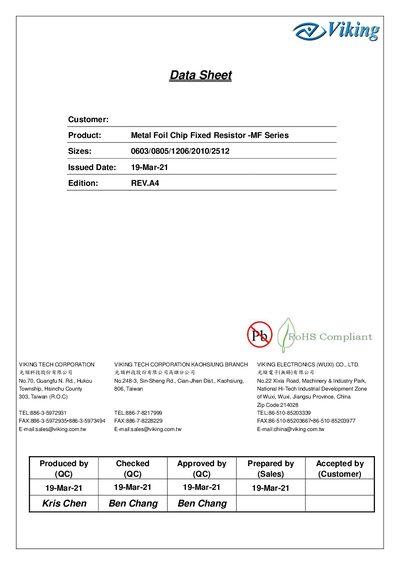

Technical data sheet for Viking Tech MF Series metal foil chip fixed resistors, covering specs, dimensions, environmental ratings and packaging.
The MF Series metal foil chip fixed resistors from Viking Tech are offered in five standard surface‑mount sizes (0603, 0805, 1206, 2010, 2512) with power ratings up to 2 W and low temperature coefficient of resistance (±50 ppm/°C). The datasheet provides detailed construction information, electrical specifications, derating curves and recommended land‑pattern dimensions for each size.
Environmental characteristics such as short‑time overload, temperature cycling, humidity resistance and solderability are defined according to IEC 60115‑1. Packaging options include paper tape and embossed plastic tape with specific reel dimensions for automated assembly.
| Maximum Power Rating | 2 W |
|---|---|
| Temperature Coefficient of Resistance (TCR) | ±50 ppm/°C |
| Resistance Range (MF03) | 5‑30 mΩ |
| Package Size (MF05) | 0805 |
| Environmental – Short Time Overload | No mechanical damage, ΔR≦±1 % |
The MF Series resistors are rated for up to 2 W of power.
The TCR can be as low as ±50 ppm/°C.
Available sizes are 0603, 0805, 1206, 2010 and 2512.
