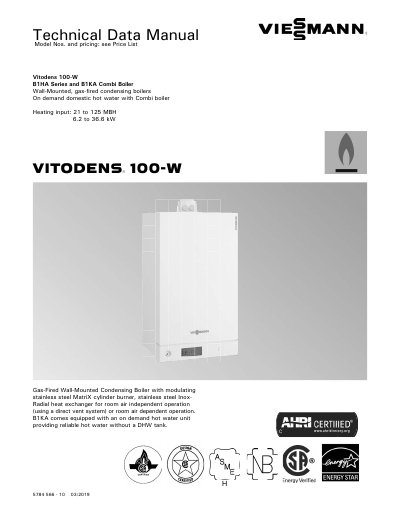

Technical data manual for the Viessmann Vitodens 100-W B1HA and B1KA wall-mounted gas-fired condensing boilers, detailing specifications, dimensions, and…
This document serves as a technical data manual for the Viessmann Vitodens 100-W B1HA series and B1KA combi boiler. It describes a wall-mounted, gas-fired condensing boiler designed for on-demand domestic hot water and space heating. Key features include a modulating stainless steel MatriX cylinder burner, a stainless steel Inox-Radial heat exchanger, and an outstanding efficiency of 95.0% A.F.U.E. The B1KA model specifically includes an on-demand hot water unit with a built-in diverting valve and a Grundfos 3-speed pump.
| Efficiency (A.F.U.E.) | 95.0% |
|---|---|
| Heating Input Range | 21 to 125 MBH (6.2 to 36.6 kW) |
| Heat Exchanger Material | Stainless steel Inox-Radial |
| Boiler Weight | 79.4 lbs (36 kg) |
| Max. Operating Pressure | 45 psig (3 bar) |
| Boiler Water Content | 1.02 USG (3.88 L) |
| Max. Gas Supply Pressure | 14 "w.c. |
The boilers have an outstanding efficiency of 95.0% A.F.U.E. on all models.
The heating input ranges from 21 to 125 MBH (6.2 to 36.6 kW).
Yes, the B1KA comes equipped with an on demand hot water unit providing reliable hot water without a DHW tank.
The maximum operating pressure at 210ºF (99ºC) is 45 psig (3 bar).
