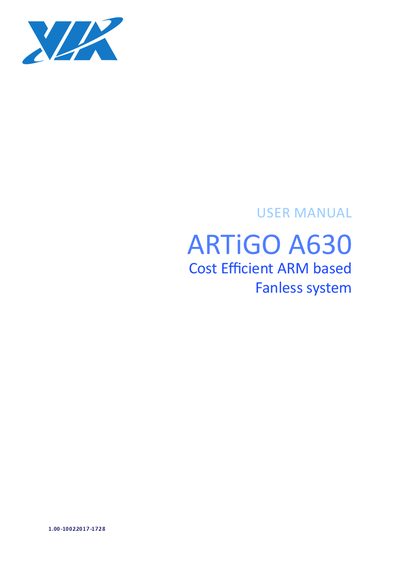

The VIA ARTiGO A630 user manual provides setup, hardware, and software instructions for the fanless embedded system.
This manual describes the VIA ARTiGO A630 fanless embedded system, a compact 1.0 GHz ARM‑based platform with 1 GB DDR3 memory, 4 GB eMMC storage, and a variety of I/O options for kiosk, signage, and IoT applications. It includes product overview, key features, specifications, and hardware installation steps.
The guide also covers external I/O pin functions, onboard connectors, optional wireless modules, and software support for Android 5.0 and Linux. Safety precautions, power requirements, and regulatory compliance information are provided throughout.
| Processor | 1.0 GHz VIA Cortex‑A9 dual‑core SoC |
|---|---|
| System Memory | 1 GB DDR3 SDRAM onboard |
| Storage | 4 GB eMMC flash memory |
| HDMI | Integrated HDMI 1.4 transmitter |
| USB | USB 2.0 hi‑speed 4‑port hub controller (ASIC USB2514B‑AEZC) |
| Ethernet | 10/100 Mbps Ethernet (ASIC AX88772CLF) |
| Audio Codec | VIA VT1603A I²C audio codec |
| Operating Temperature | 0 °C ~ 50 °C |
| Power Supply | 12 V DC‑in |
The system requires a 12 V DC power supply.
