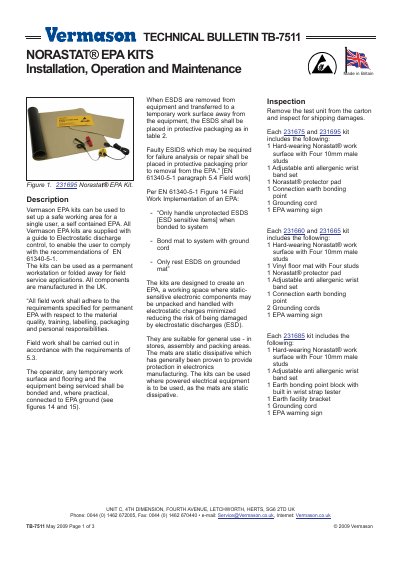

Installation, operation, and maintenance guide for Vermason NORASTAT EPA kits (models 231675, 231695, 231660, 231665, 231685).
The NORASTAT® EPA kits provide a self‑contained electrostatic protected area (EPA) for handling static‑sensitive electronic components. The kits include a work surface, grounding cords, wrist‑band, and warning signs to create a safe, static‑dissipative workspace suitable for permanent or field‑service use.
The manual details step‑by‑step installation of bench and floor mats, grounding procedures, wrist‑band connection, and resistance testing. It also covers safety limits, warranty terms, and recommended handling practices for ESD‑sensitive devices.
| Mat resistance (test voltage 100 V) | 5 × 10⁶ – 5 × 10⁷ Ω |
|---|---|
| Operator resistance (test voltage <30 V) | > 0.75 MΩ – 35 MΩ |
| Maximum equipment voltage | 250 VAC or 500 VDC |
| Warranty period | 1 year from date of purchase |
Measure the mat resistance at 100 V; it should be about 5 × 10⁶ to 5 × 10⁷ Ω, and the operator resistance should be greater than 0.75 MΩ and less than 35 MΩ at under 30 V.
Vermason provides a one‑year warranty from the purchase date covering defects in material and workmanship.
No, the product is not recommended for use on equipment with operating voltage exceeding 250 VAC or 500 VDC.
