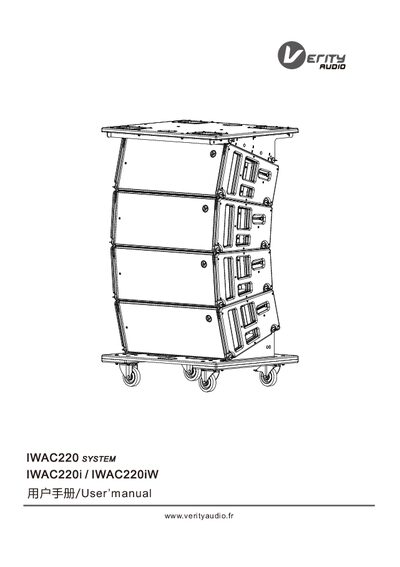

The manual provides specifications, installation instructions, and system application information for the Verity Audio IWAC220 loudspeaker system.
The IWAC220 is a full‑frequency vertical line‑array loudspeaker composed of dual 10" mid‑low drivers and dual 1.73" compression drivers, offering a horizontal coverage of 120° and vertical coverage of 10°. It handles up to 500 W AES power (LF) and 110 W AES power (HF), delivering SPL levels above 136 dB at 1 m.
The document details the installation process, including hanging accessories, extension rods, and stacking limits, as well as recommended system configurations for various venue sizes. It also lists the required cabling and provides dimensions, weight, and connector information for proper setup.
| AES Power Handling (LF) | 500 W |
|---|---|
| AES Power Handling (HF) | 110 W |
| Nominal Impedance | 16 Ω (LF & HF) |
| Frequency Response (LF) | 80 Hz – 3.2 kHz |
| Frequency Response (HF) | 1.5 kHz – 18 kHz |
| Sensitivity (LF) | 100 dB |
| Sensitivity (HF) | 113 dB |
| Maximum SPL | >136 dB |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 10° |
| Dimensions (W×H×D) | 742 mm × 287 mm × 425 mm |
| Weight | 34.5 kg |
| Recommended Crossover Points | LF 90 Hz, HF 1.8–2 kHz |
The recommended crossover points are 90 Hz for the low‑frequency drivers and 1.8 kHz to 2 kHz for the high‑frequency drivers.
It is recommended not to exceed four cabinets in a stack to maintain proper center‑of‑gravity stability.
