Valveworks USA PDA Service and Operation Manual

This Valveworks USA service and operation manual provides instructions for assembly, installation, maintenance, and troubleshooting of the PDA pneumatic…

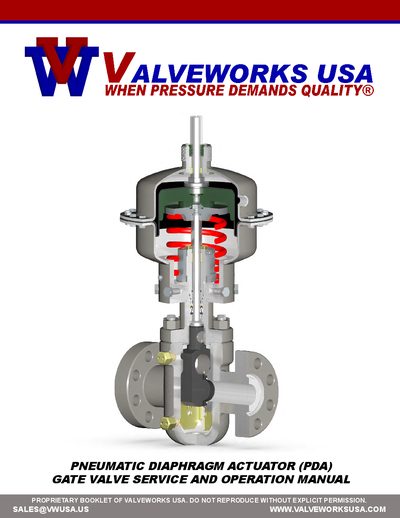

Valveworks USA PDA Service and Operation Manual - cover page
Brand
Valveworks USA
Category
Other
Document type
Service Manual
Language
English
Pages
22
File format
PDF
File size
1.2 MB
Published
01 October, 2026
Updated
01 October, 2026
MD5 checksum
35CBDB6B51C7EBF8C9209AB69E878FDA
PDF
Valveworks USA PDA Service and Operation Manual PDF

About this manual

The PDA (Pneumatic Diaphragm Actuator) gate valve is a pressure‑rated valve designed for use in oil‑field and industrial applications. The manual covers safety guidelines, product specifications, and recommended operating practices.

The document includes sections on applications, temperature ratings, trim charts, ordering information, detailed assembly instructions with bill of materials, periodic maintenance, operation procedures, troubleshooting, warranty terms, and ordering policies.

What's inside

  • Applications
  • Temperature Rating
  • Trim Chart
  • Assembly Instructions
  • Bill of Materials
  • Operation
  • Maintenance
  • Troubleshooting

Specifications

Gate valve size range1-13/16 through 7-1/16
Maximum allowable working pressure (MAWP)0 to 20M
Actuator maximum operating pressure170 PSI
Temperature range-46°C to 121°C (-50°F to 250°F)

Frequently asked questions

What is the maximum operating pressure for the actuator?

The actuator’s maximum operating pressure is 170 PSI.

What temperature range can the valve operate in?

The valve can operate from –46 °C to 121 °C (‑50 °F to 250 °F).

How long is the limited warranty provided by Valveworks USA?

Valveworks USA offers a one‑year limited warranty from the date of shipment.
