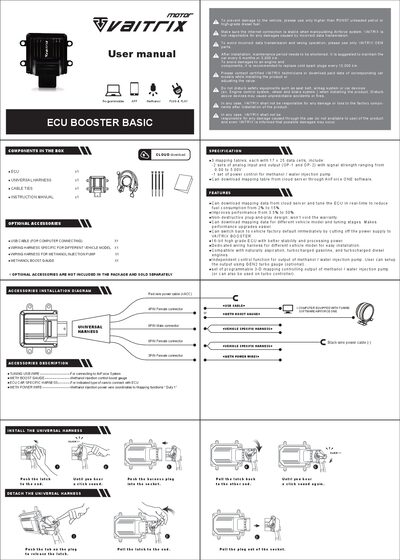

The VAITRIX BOOSTER user manual explains cloud mapping download, plug‑and‑play installation, and methanol injection control for ECU tuning.
The VAITRIX BOOSTER is a plug‑and‑play ECU tuning device that downloads mapping data from a cloud server to improve fuel consumption and performance. The box contains a universal harness, cable ties, a USB cable, and the instruction manual.
Installation involves connecting the universal harness, securing the latch with audible clicks, and attaching the vehicle‑specific wiring. Safety notes advise using fuel higher than RON 97, keeping a stable internet connection, and following the recommended maintenance schedule.
| ECU resolution | 16‑bit |
|---|---|
| Mapping tables | 3 tables, 17 × 25 cells each |
| Analog input range | 0.00 V to 5.00 V |
Push the latch to the end until you hear a click, insert the harness plug, pull the latch back, click again, then release the latch to secure the connection.
Use fuel higher than RON 97 unleaded petrol or high‑grade diesel.
No. Optional accessories such as the USB cable, vehicle‑specific harness, methanol injection harness, and methanol boost gauge are sold separately.
Yes, cutting off the power supply to the VAITRIX BOOSTER restores the vehicle to factory defaults.
