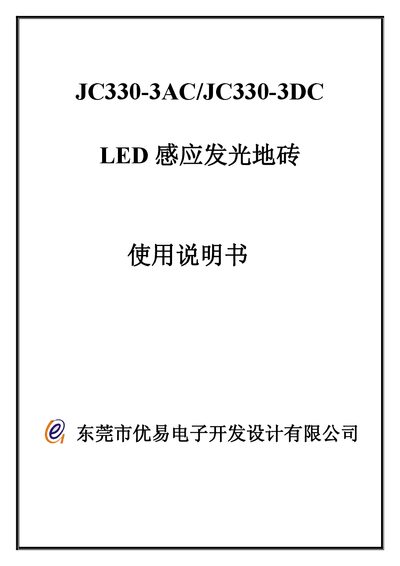

User manual for Uyi JC330-3AC/JC330-3DC LED sensor floor tiles, covering installation, operation, specs and safety.
This manual provides detailed instructions for installing and operating the Uyi JC330-3AC and JC330-3DC LED sensor floor tiles. It includes safety precautions, wiring diagrams, controller functions, and after‑sales service information.
The document also lists technical specifications such as voltage requirements, power consumption, waterproof rating, dimensions, and environmental limits, helping users ensure proper setup and reliable performance. This manual is written in Chinese.
| Working voltage | JC330-3AC: AC100‑240V; JC330-3DC: DC12‑24V |
|---|---|
| Maximum power | 25W (white light) |
| Average working power | 10W‑15W (color change) |
| Waterproof rating | IP67 |
| Maximum pressure per tile | 300KG |
| Tile weight | 4.5KG |
| Tile dimensions | 330×330×42 mm |
| Operating temperature range | -10 °C to 60 °C |
| Relative humidity range | 10% to 90% |
The JC330-3AC version uses an AC100‑240V power supply.
The floor tiles have an IP67 waterproof rating.
One controller can connect up to 200 floor tiles.
Each tile can withstand a maximum pressure of 300 KG.
